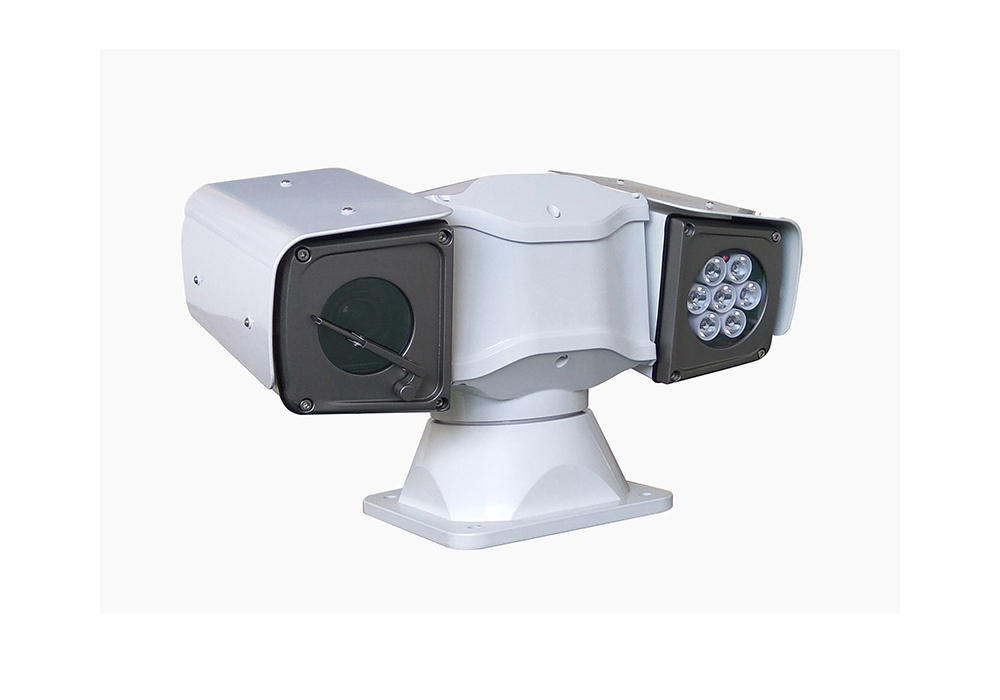

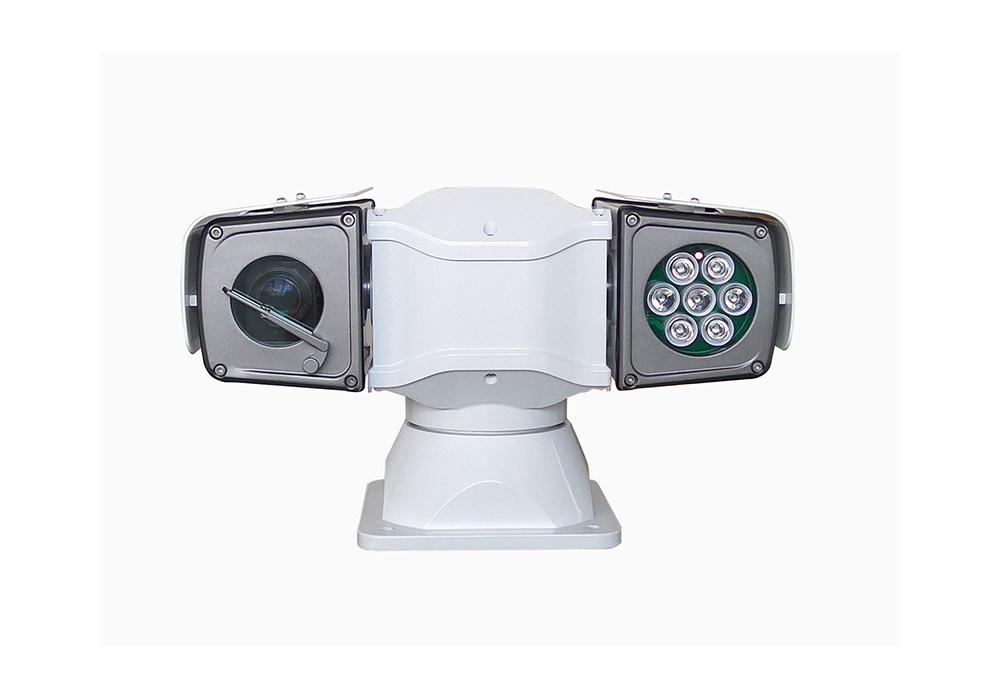

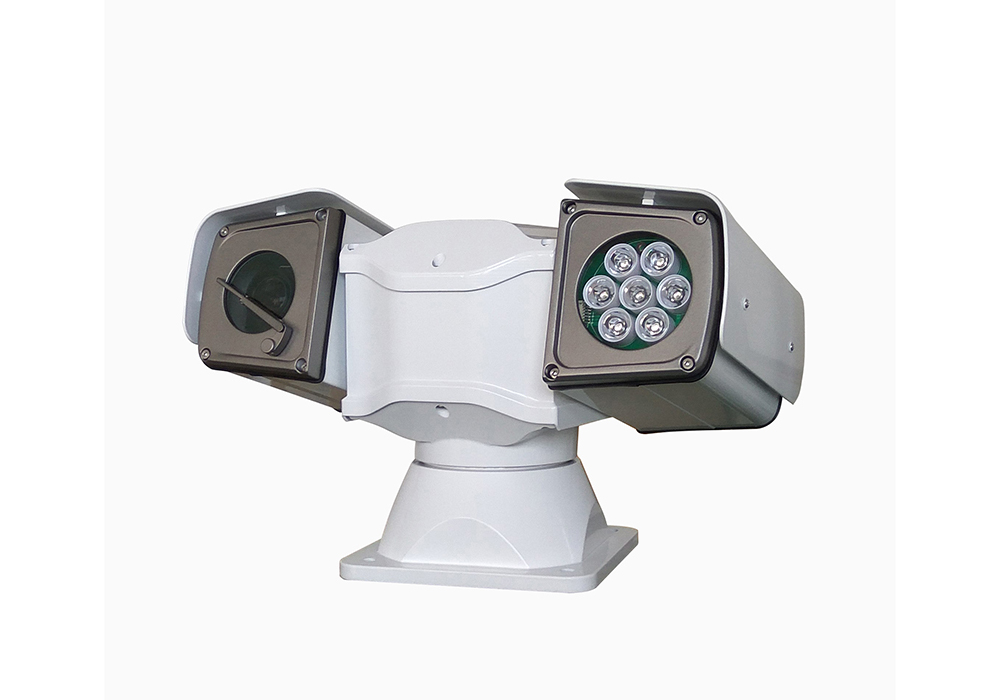

Adopt imported 7 array big red exterior lamps, infrared distance: 100-120m

It adopts 1 / 2.7 "CMOS sensor ahd high-definition all-in-one machine, with the definition of 2 million pixels

30x optical zoom

High speed digital focusing technology, continuous tracking and automatic focusing

3D noise reduction, privacy occlusion, automatic gain, white balance; dual filter switching, infrared internal synchronization, built-in IR / cut

The special movement of PTZ supports Sony and LG protocols

Focus: 3.9-85.8mm (standard shockproof base)

Product features:

It is the first independent defrosting and defrosting module in China, which can solve the fogging of camera lens caused by temperature difference in outdoor environment

The camera warehouse adopts high-quality heating parts to form an effective anti fogging and defogging pattern

The integrated structure of upper and lower spindles is adopted to prevent the PTZ camera bin and infrared bin from bumping and dislocation

The original voltage stabilizing module is equipped as standard to filter the transient unstable current of the vehicle to keep the PTZ in a stable state

The high-speed rotation of PTZ is more smooth, and there is no jitter at low speed

Ultra high strength aluminum alloy design, protection grade IP66

Infrared night vision with 100 meter image quality

All round monitoring without dead angle of PTZ

Pan tilt performance:

Horizontal preset speed 100 ° / S

Vertical preset speed 60 ° / S

Horizontal manual control speed 0 ° - 60 ° / S

Vertical manual control speed 0 ° - 40 ° / S

Horizontal angle 360 ° infinite rotation

Vertical angle - 90 ° - + 90 °

Preset position accuracy ± 0.1 degree

There are 256 preset points and 8 inspection tracks

Wiper function support

The infrared lamp is 100 meters away from the night vision of two groups of lenses

Control mode RS485, built-in PELCO D / P protocol, baud rate from 2400bps to 19200bps optional

Relative humidity less than 90%

Protection grade IP66

Operating temperature - 35 ° C - + 55 ° C

Power consumption dc10.8-dc18v

Shock resistance requirement ≥ 4G

Wiper function support

Various installation methods can be selected according to the application environment

Weight 7kg
