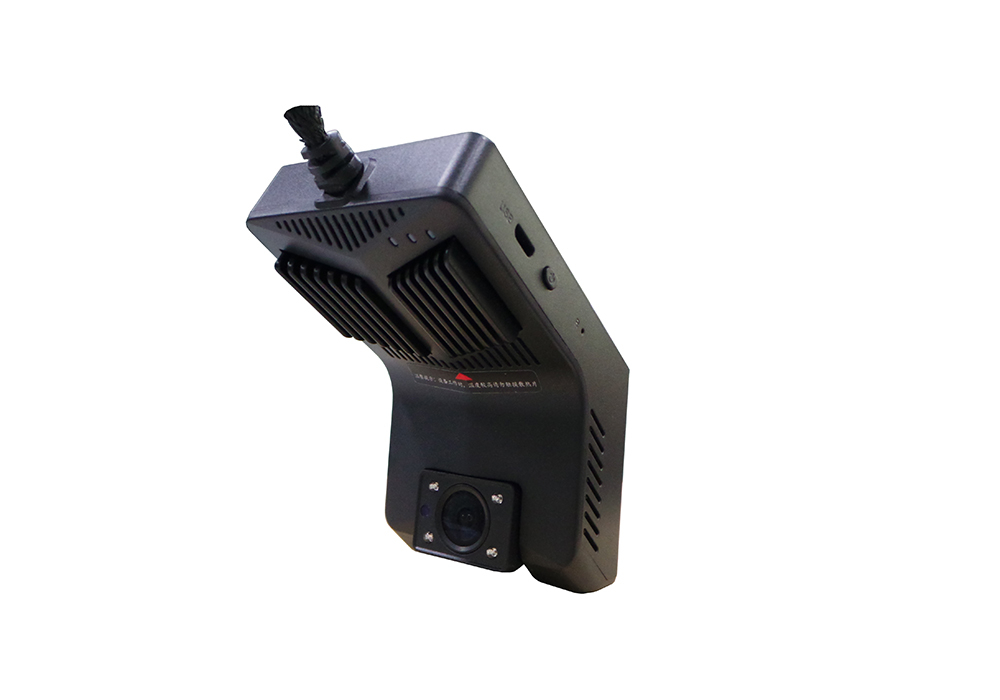

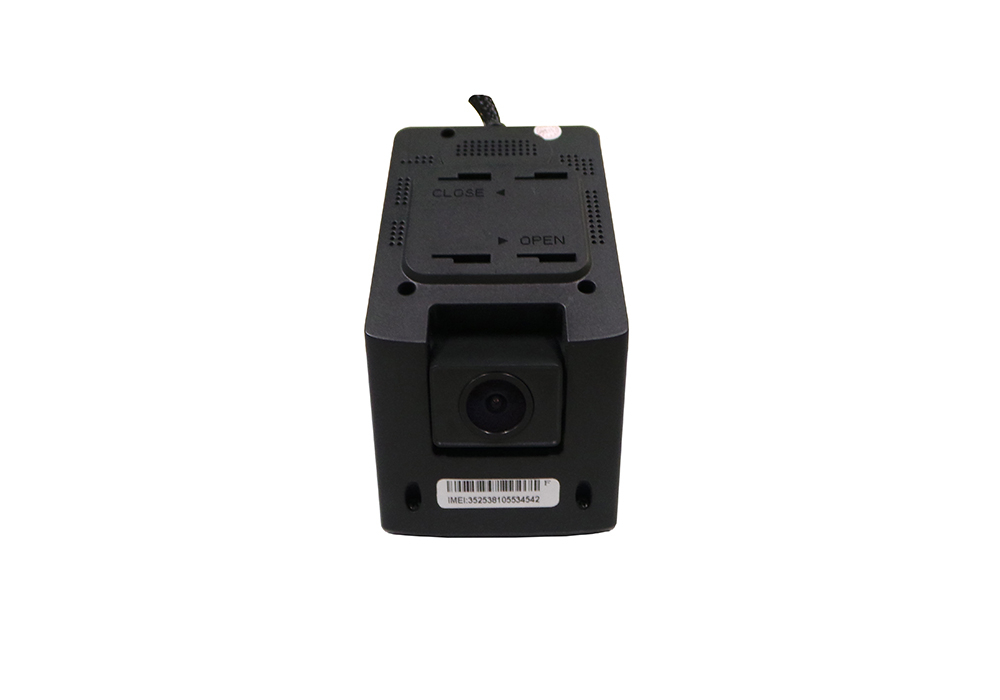

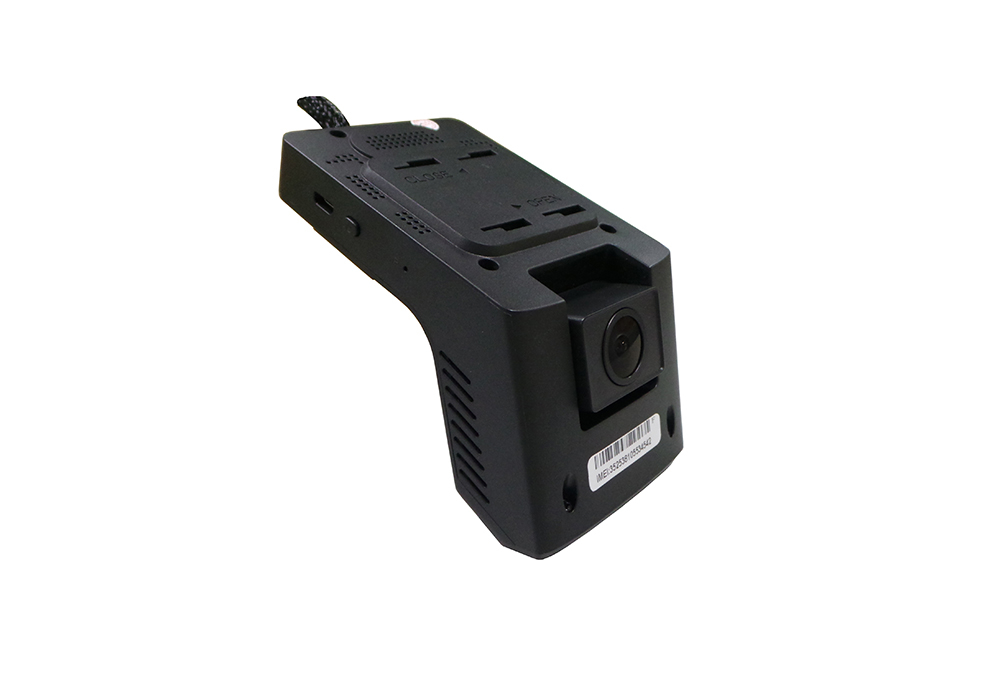

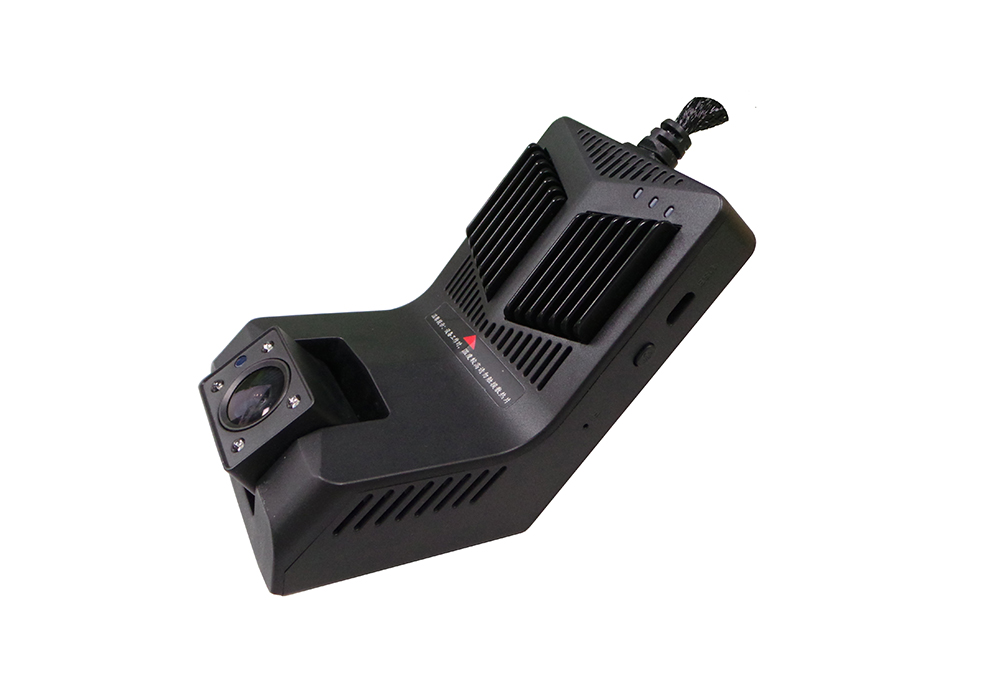

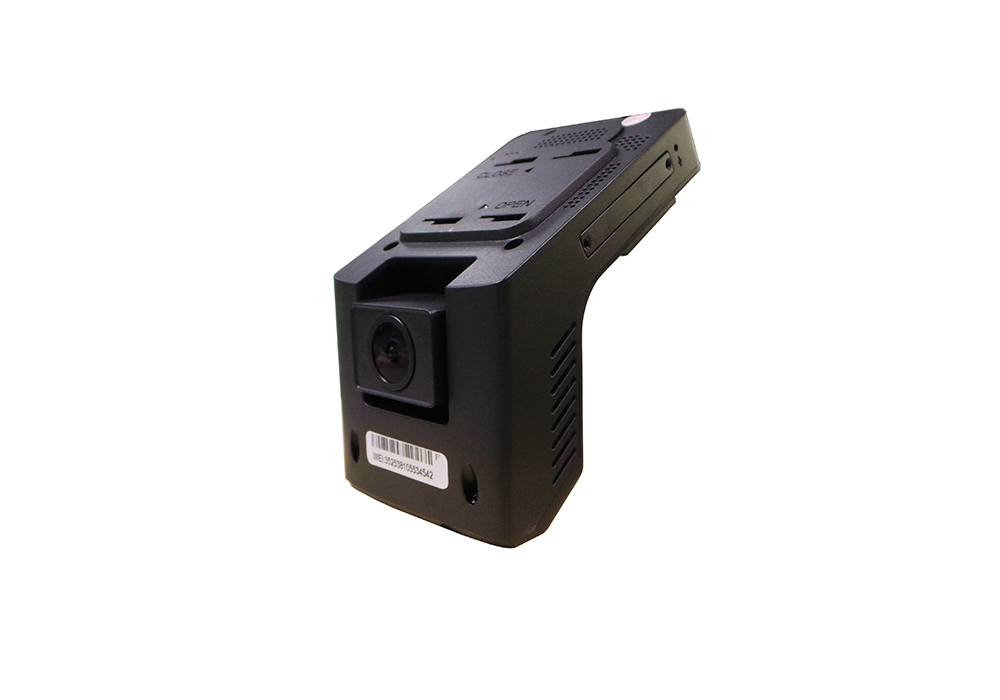

This product is a 4G dual recording tachograph, which has high-definition vehicle DV camera, one button alarm, GPS driving track, positioning, WiFi hotspot, 4G communication and external TF card memory. It is in line with JT / t1078 "road transport vehicle satellite positioning system video frequency communication protocol" and JT / T808 "road transport vehicle satellite positioning system Beidou compatible vehicle terminal" Communication protocol technical specification.

Function parameters: the equipment supports the jt1078 platform of the Soviet standard, and integrates the DSM (driver status monitoring system) to remind the driver of the fatigue state, calling, yawning, smoking, not wearing the seat belt, and other bad driving behaviors; the device is equipped with ADAS (advanced safety auxiliary system), and ADAS recorder can give you early warning of track deviation, vehicle distance ahead, and high-speed driving Driving is particularly important, in the event of a collision can quickly record the scene. It mainly includes: lane departure warning, front vehicle anti-collision warning & vehicle distance keeping, front vehicle starting warning

1 processor autochip mt3561 cortex-a53 quad core

2 main frequency 1.5GHz

3 ram lpddr3 1GB

4 storage ROM emmc5.1 16GB

5 positioning module GPS & BD dual-mode module, positioning accuracy less than 10 meters, external active antenna

6-band GSM B5 / B3 WCDMA B1 / B5 TD-SCDMA B34 / b39 tdd-lte b38 / b39 / b40 / B41 fdd-lte B1 / B3 / B5 built in antenna

7 Bluetooth bt4.0

8 WiFi 802.11b/g/n 2.4GHz; support WiFi hotspot built-in antenna

9 front camera gc2053 (1080p); 4 Glass 140 wide angle; H.264 encoding; Mipi interface

10 rear camera gc1064 (720p) 4 GLASS + IR (850); Mipi interface

11 collision lock shadow 3-axis G-sensor sensor, supporting cyclic video recording

12 parking monitoring 3-axis G-sensor sensor, supporting parking monitoring

13 light sensor support

14 SOS supports one button alarm

15. The red light indicates that the network is normal; the green light indicates that the video is being recorded; and that the blue light is on for a long time indicates that the GPS is normal

The maximum support of 16 storage TF card is 128GB

17 USB MicroUSB 2.0

18 microphone with built-in high sensitivity microphone

19 speaker built in high fidelity mono 1.5w/8r speaker

20 external equipment supports one-way URAT

21 power supply dc9v-16v

22 operating system Android 5.1

23 software upgrade supports software update through TF card and OTA online upgrade

Environmental reliability working environment: - 20 ℃～ + 70 ℃ storage temperature: - 30 ℃～ + 80 ℃

Main application industry: mainly used in online car hailing, taxi, logistics deployment, operation fleet, personal location service real-time monitoring and supervision and vehicle operation status.
