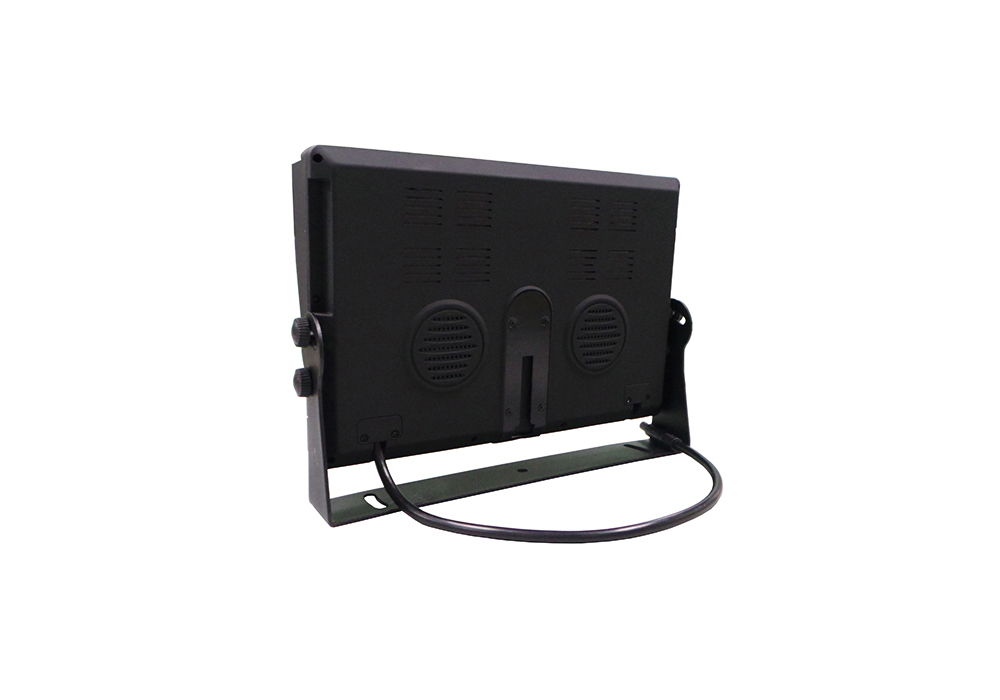

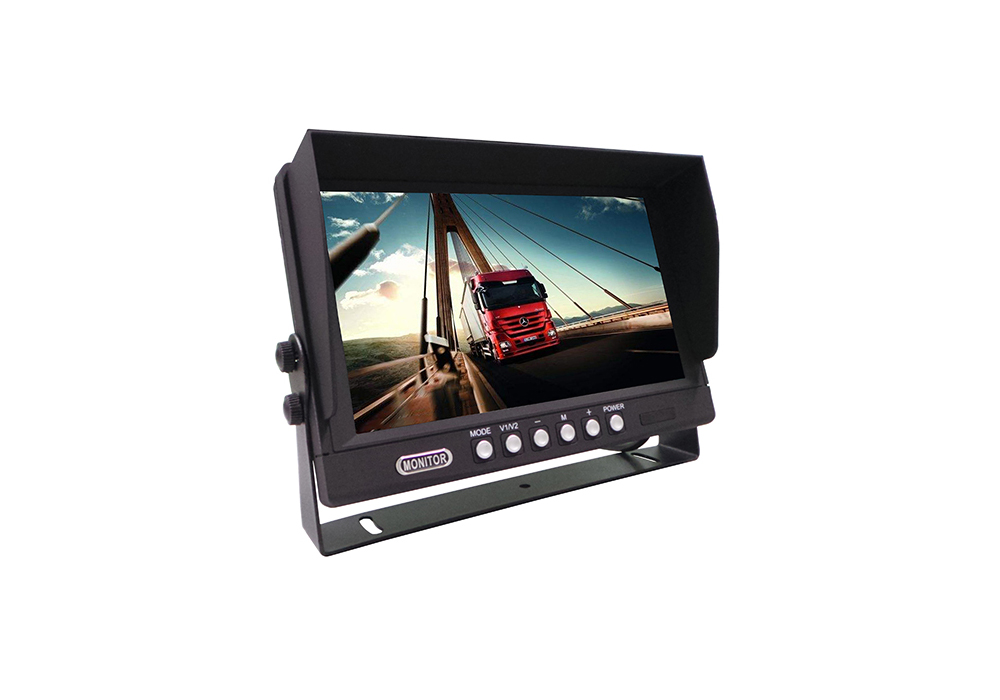

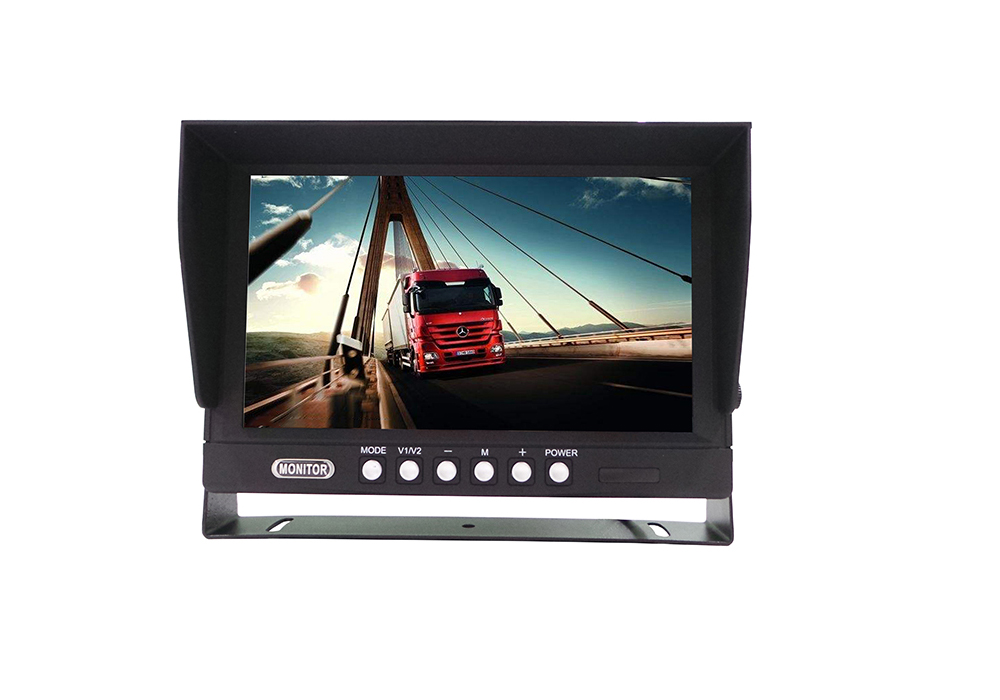

9-inch digital display for vehicle borne aircraft short head LCD LA-903

Product model: la-ahd903

Product size: 230mm * 155mm * 27mm

Features

16: 9 wide screen display

Resolution: 1024 * r.g.b * 600

Backlight brightness: 250-350cd / m2

Viewing angle: left / right / lower 70 ° and upper: 50 °

Two way video input,

Reverse trigger V2 priority

Automatic conversion of PAL & NTSC system

8 kinds of OSD menu, remote control operation

Power requirements: input 12v-24v, (901)

RCA A / V connector input, 4 pin cable (optional)

Appearance color: Black

Standard: Butterfly bracket/Fan bracket / embedded frame (optional)

(standard configuration: 2-way aviation head input (1 Male + 1 female)

Body dimensions: 230 * 155 * 27

Project	Specification parameters
Standard	PAL & NTSC
resolving power	1024*600
Scope of perspective	180°
Backlight brightness	450cd/㎡
Power requirements	Dc9v-36v input, DC12V aircraft output
Product size	230mm155mm27mm
