The on-board video monitoring terminal integrates ADAS advanced driving assistance system and DSM driver monitoring system, and supports audio and video recording, SD card storage, driving data recording, platform upload, two-way call, real-time monitoring and other functions. Refer to the relevant national agreements such as ministry standard Beidou protocol (JT / T 794-2011, JT / t 808-2011), ministerial standard video protocol (JT / T 1076-2016, JT / T 1078-2016). It supports seamless docking with third-party platforms, and is suitable for taxi, online car hailing, minivan, engineering vehicle and other industries.

Product features

Reference to relevant national agreements: ministerial standard Beidou agreement (JT / T 794-2011, JT / T 808-2011), ministerial standard video protocol (JT / T 1076-2016, JT / T 1078-2016)

Support 4-channel 720P HD video real-time storage and upload

Support 1-way CVBS video output, and can be connected with external AV display screen for real-time video live broadcast

Support remote intercom

At the same time, it supports two SD cards for cyclic storage

The expansion interface is rich, which can be connected with external oil rod, advertising screen, meter, evaluator, roof lamp, safety module and other peripherals

Supporting active and safe driving assistance system (ADAS + DSM)

Adas: voice warning prompt for dangerous driving behaviors such as lane departure, too close distance between vehicles and collision, and upload to the platform for evidence collection;

DSM: effective early warning for dangerous driving behaviors of drivers, such as fatigue, smoking, phone calls, distraction and other dangerous driving behaviors, and upload them to the platform for evidence collection.

Support mobile phone wired connection: connect mobile phone through USB port and USB cable in front of the device, display ADAS and DSM camera images through mobile phone app, query and set parameters.

2. Product specifications

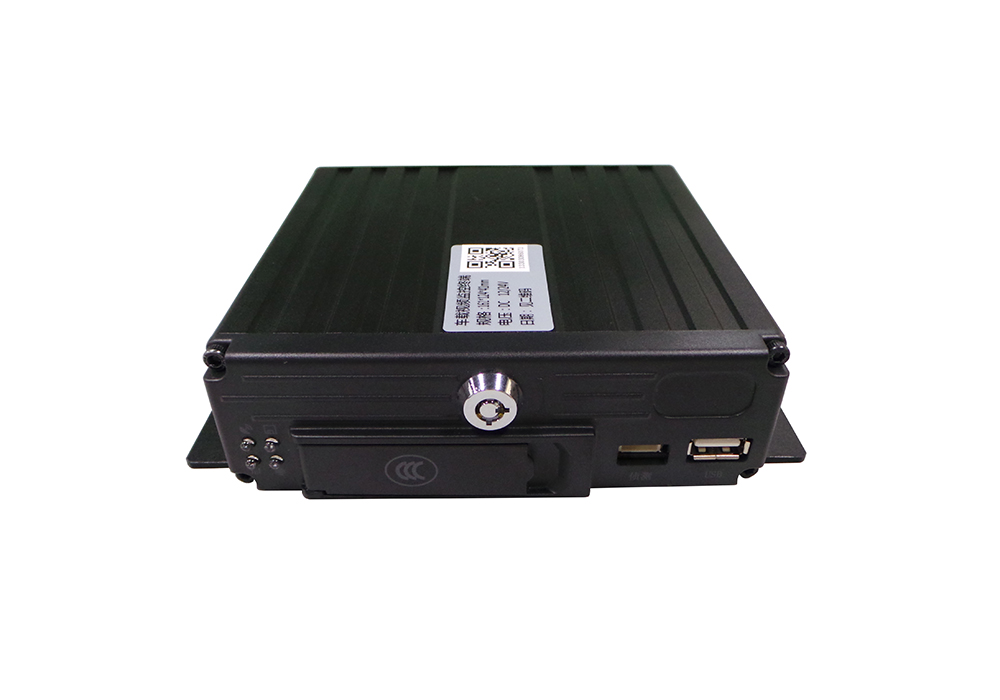

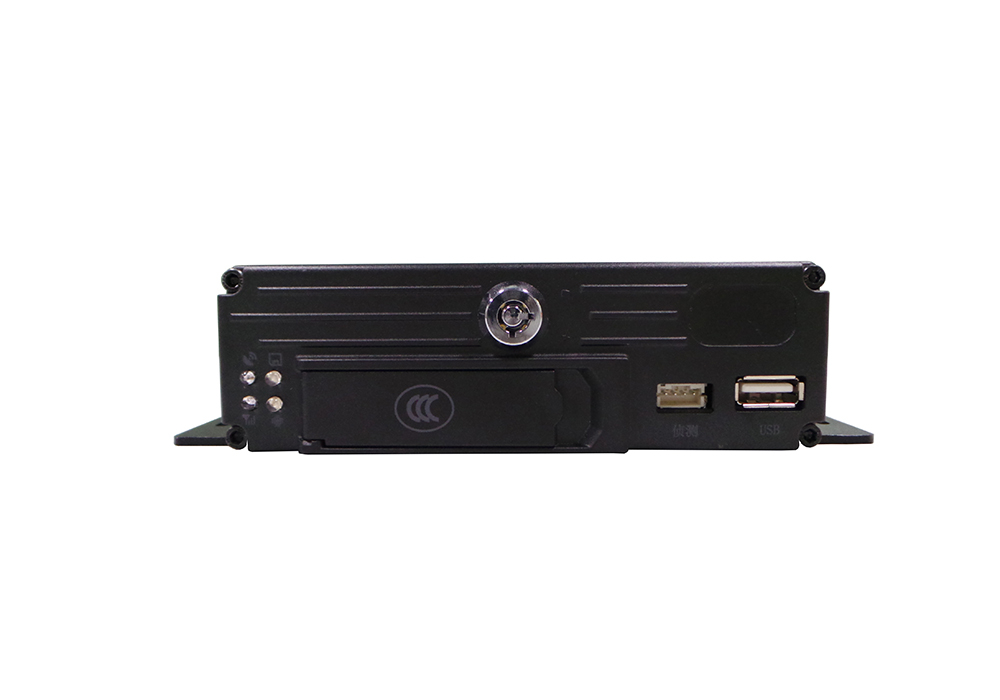

Product Name: vehicle video monitoring terminal

Product model: la-s4

Product size: l161mm * w124mm * h41mm

Reference agreement: JT / t794-2011, JT / T 808-2011, JT / t1076-2016, JT / t1078-2016
