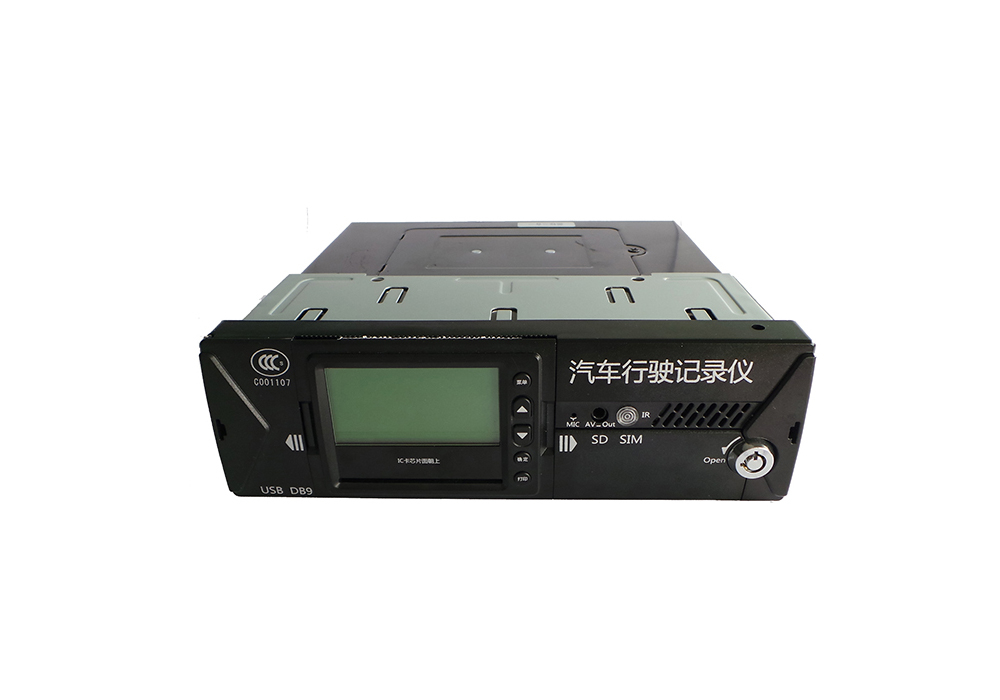

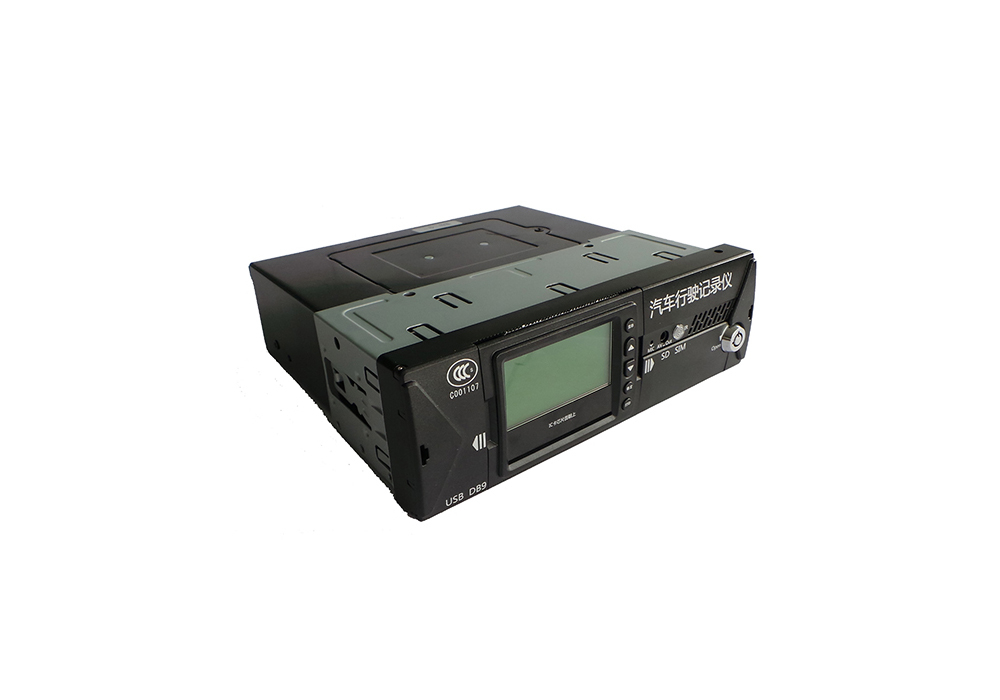

Adas / DSM 4G high definition video vehicle mounted part standard all in one machine (all Netcom)

6-channel 1080p video input or 6-channel SD video plus 1-channel 1080p network camera input

Support dual SD card to record data (support large capacity SD card, single card up to 128G)

remarks:

Adas and DSM are 720p cameras. Access av5 and av6. If AV1 to av4 access 1080p cameras, please enter the main menu - video settings - basic settings. The input type is 4x1080p + 4x720p

Adas refers to: front vehicle collision alarm, vehicle proximity alarm, urban virtual bumper alarm, lane departure alarm, pedestrian collision alarm, etc;

DSM refers to: Driver condition monitoring system, fatigue driving monitoring, smoking monitoring, answering and calling monitoring, distracted driving monitoring and abnormal condition monitoring

Product features:

Support the technical standard design of JT / t794-2011 technical requirements for vehicle terminal of satellite positioning system for road transport vehicles and JT / t808-2011 communication protocol and data format for vehicle terminal of satellite positioning system for road transport vehicles

His solution adopts international mainstream H.264 encoding format, high compression ratio, clear image and small disk space;

6-channel 1080p video input or 6-channel standard definition video plus 1 channel 1080p network camera input, 6-channel audio input + 1 channel 1080p network camera input, providing million HD video recording effect;

Real Time HD video recording, 1080p / 720p / D1 / HD1 / CIF optional, frame rate and image quality adjustable;

Professional vehicle power supply design, 8-36v DC wide voltage input; overload / undervoltage / short circuit / reverse connection and other protection circuits, suitable for all kinds of vehicles;

Provide 12VDC power output, which can supply constant voltage power for camera, small screen and other peripheral equipment;

Double SD card can record data (support large capacity SD card, single card can reach 128G), which can completely resist data damage caused by vibration and dust on the vehicle, so that the product can adapt to the bad road conditions that most products can not adapt to;

The abnormal restart function of watchdog can protect the machine and video better;

Exclusive pre distributed on-board special file system technology can solve the problem of file fragments caused by repeated erasure and ensure the integrity of data;

The ignition off delay video recording function (the time can be set up to 24 hours);

Power off protection function in case of accidents: with special UPS Technology, the machine can still work normally for 10 to 15 seconds when the external power supply is cut off, so as to ensure the integrity of video files and facilitate accident inquiry

Various video recording modes, such as automatic video recording, manual video recording and alarm video recording, can meet different needs;

Display and record vehicle information such as driving status, license plate, line, ultra-low speed, etc., which is convenient for management;

Support GPS / BD, 3G / 4G module expansion (optional); expandable WiFi;

Strong network function, support SMS configuration parameters and access to equipment information; built in printer TTS, RFID card reader

Remote support of audio and video monitoring, two-way voice intercom, remote pan tilt control, manual alarm, overspeed alarm, overrun and line deviation alarm;

There are 8 channels of IO alarm input (door opening and closing, lighting, steering, braking and reversing, and various types can be configured), and 1 channel of analog alarm input can linkage multiple responses;

2-way alarm independent output, support linkage sound and light alarm, oil cut-off and power-off;

Support alarm input and local automatic photographing function;

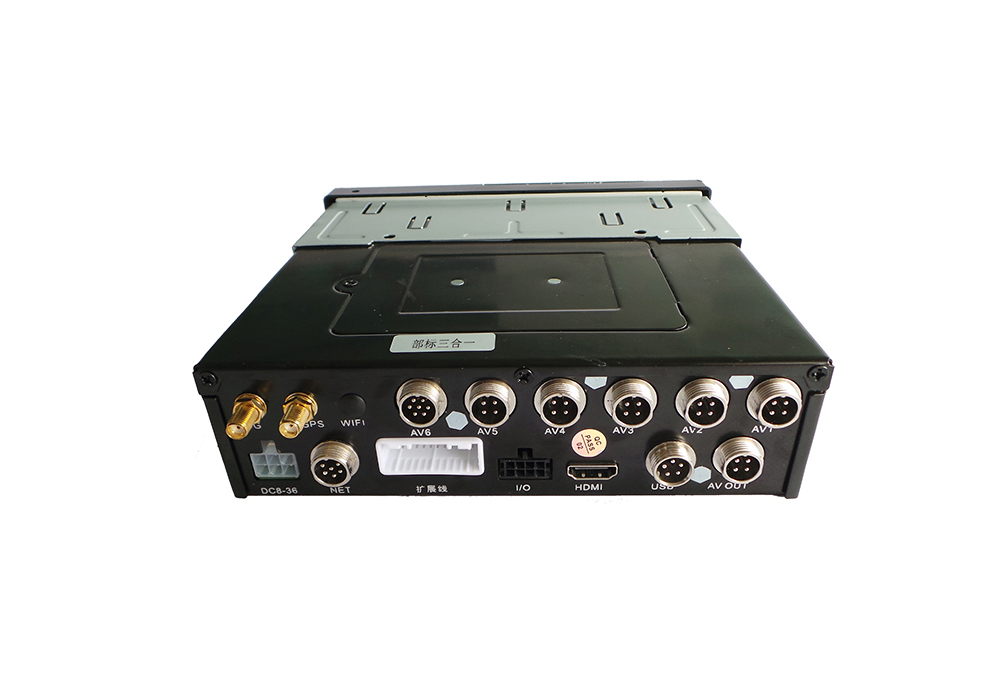

High reliable input and output interface of aviation head, convenient installation and insertion, and stronger anti-seismic performance;

Beautiful and powerful client program, providing real-time monitoring, intercom, playback, video, high-definition screen capture and other functions;

Software upgrade / OTA remote automatic upgrade can be carried out through SD card, and partition backup technology is adopted to upgrade without crash;

Support remote monitoring of mobile phone and 3G call function of mobile phone;

Support the Ministry of Communications Ministry standard agreement, can expand pan tilt control, card reader, fuel sensor, LED advertising screen, etc;

The video adopts the general FAT32 / special file format to support the mainstream H264 player in the market;

It supports 6-way 12V / 0.5A power output, which can supply power for peripheral devices;

Professional playback analysis software, synchronous playback of GPS / BD track, vehicle driving state, speed and audio-visual images;

Centralized management software, supporting real-time transmission of vehicle image and alarm information, etc;
