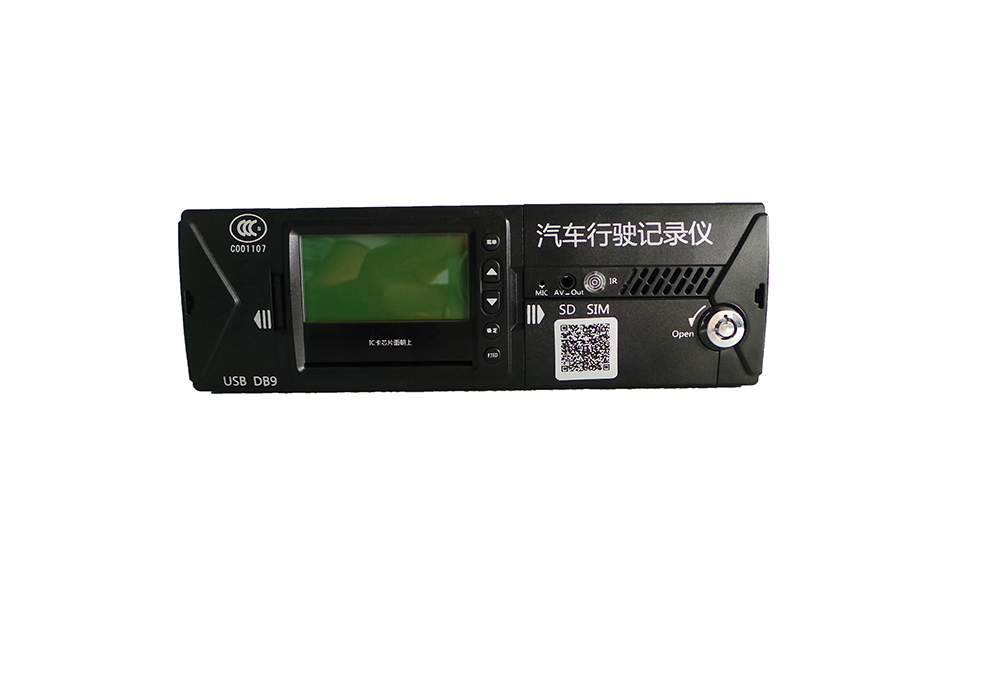

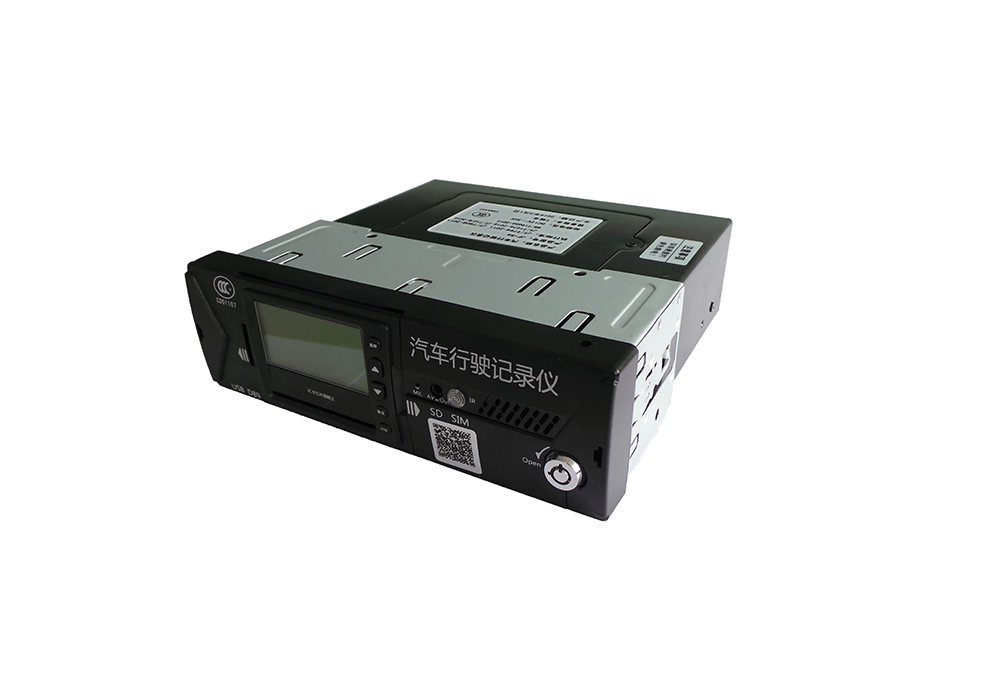

Beidou / GPS video vehicle positioning terminal is in accordance with JT / t794-2011 "technical requirements for vehicle mounted terminal of satellite positioning system for road transport vehicles" and JT /T808-2011 "road transport vehicle satellite positioning system vehicle terminal communication protocol and data format" technical standard design of terminal equipment, the device set GPS / BeiDou positioning monitoring, local SD card video, 4G remote real-time video monitoring, voice call, IP voice, TTS, can bus interface and driving recorder and other advanced functions in one intelligent terminal product. The functions of real-time monitoring, production and operation management, command and dispatch are organically integrated. La096hd is a cost-effective and scalable device specially developed for on-board video monitoring and remote monitoring. It uses high-speed processor and embedded operating system, combined with the most advanced H.264 video compression / decompression technology, network technology, GPS / BD positioning technology. It can support 6 channels of million HD video monitoring and playback (6 channels of real-time 1080p million ahd HD input and 6 channels of analog standard definition camera input + 1 channel of 1080p network camera input); 2 channels of video output (1 channel of video output and 1 channel of HDMI output). The exclusive pre distributed vehicle specific file system technology can solve the problem of file fragments caused by repeated erasure, solve the problem of memory file system running down, data loss, no memory and file disorder, and ensure the stability and integrity of the data; vehicle driving information recording and wireless data uploading, combined with the central software, can realize the central monitoring, remote management and center based alarm linkage Database playback analysis. The product has the characteristics of simple appearance, strong anti vibration, flexible and convenient installation, powerful function and high reliability. His solution adopts international mainstream H.264 encoding format, high compression ratio, clear image and small disk space;

* 6-channel 1080p video input or 6-channel standard definition video plus 1 channel 1080p network camera input, 6-channel audio input + 1 channel 1080p network camera input, providing million HD video recording effect;

Real Time HD video recording, 1080p / D1 / HD1 / CIF optional, frame rate and image quality adjustable;

Professional vehicle power supply design, 8-36v DC wide voltage input; overload / undervoltage / short circuit / reverse connection and other protection circuits, suitable for all kinds of vehicles;

Provide 12VDC power output, which can supply constant voltage power for camera, small screen and other peripheral equipment;

Double SD card can record data (support large capacity SD card, single card can reach 128G), fully resist data damage caused by vibration and dust on the vehicle, and support storage of maximum 2.5 inch 2T hard disk.

The abnormal restart function of watchdog can protect the machine and video better;

Exclusive pre distributed on-board special file system technology can solve the problem of file fragments caused by repeated erasure and ensure the integrity of data;

The ignition off delay video recording function (the time can be set up to 24 hours);

Power off protection function in case of accidents: with special UPS Technology, the machine can still work normally for 10 to 15 seconds when the external power supply is cut off, so as to ensure the integrity of video files and facilitate accident inquiry

Various video recording modes, such as automatic video recording, manual video recording and alarm video recording, can meet different needs;

Display and record vehicle information such as driving status, license plate, line, ultra-low speed, etc., which is convenient for management;

Support GPS / BD, 3G / 4G module expansion (optional); expandable WiFi;

Strong network function, support SMS configuration parameters and access to equipment information; built in printer TTS, RFID card reader

Remote support of audio and video monitoring, two-way voice intercom, remote pan tilt control, manual alarm, overspeed alarm, overrun and line deviation alarm;

There are 8 channels of IO alarm input (door opening and closing, lighting, steering, braking and reversing, and various types can be configured), and 1 channel of analog alarm input can linkage multiple responses;

2-way alarm independent output, support linkage sound and light alarm, oil cut-off and power-off;

Support alarm input and local automatic photographing function;

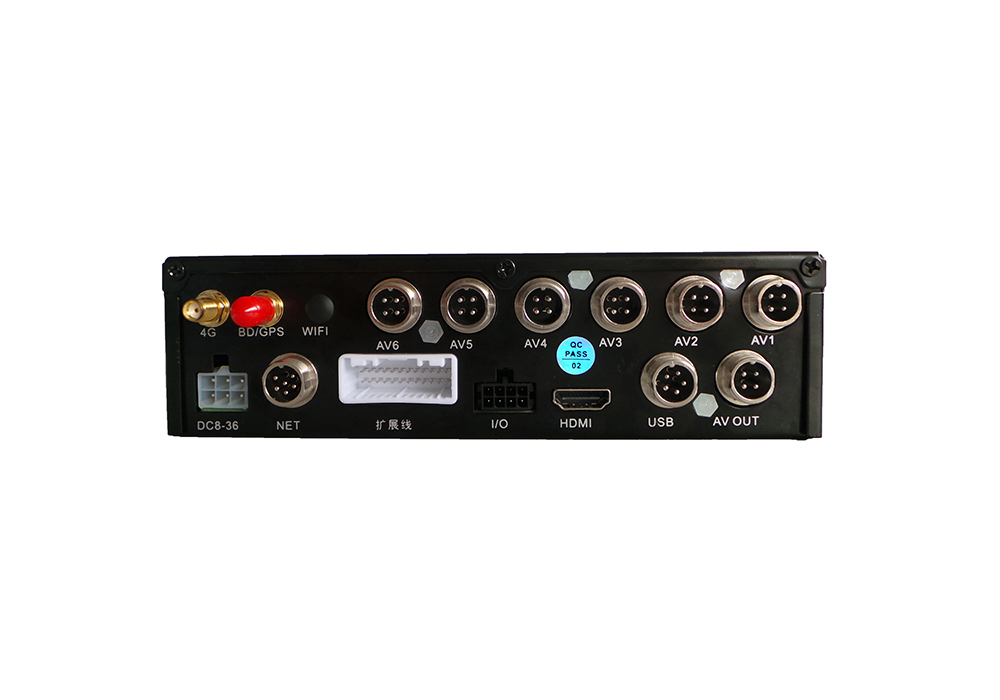

High reliable input and output interface of aviation head, convenient installation and insertion, and stronger anti-seismic performance;

The system interface is smooth, intuitive and perfect;

Beautiful and powerful client program, providing real-time monitoring, intercom, playback, video, high-definition screen capture and other functions;

Software upgrade / OTA remote automatic upgrade can be carried out through SD card, and partition backup technology is adopted to upgrade without crash;

Support remote monitoring of mobile phone and 3G call function of mobile phone;

Support the Ministry of Communications Ministry standard agreement, can expand pan tilt control, card reader, fuel sensor, LED advertising screen, etc;

It can be customized in batches according to customer requirements;

The video adopts the general FAT32 / special file format to support the mainstream H264 player in the market;

It supports 6-way 12V / 0.5A power output, which can supply power for peripheral devices;

Professional playback analysis software, synchronous playback of GPS / BD track, vehicle driving state, speed and audio-visual images;

Centralized management software, supporting real-time transmission of vehicle image and alarm information, etc;

Small size: 187 x 58 x 172 mm
