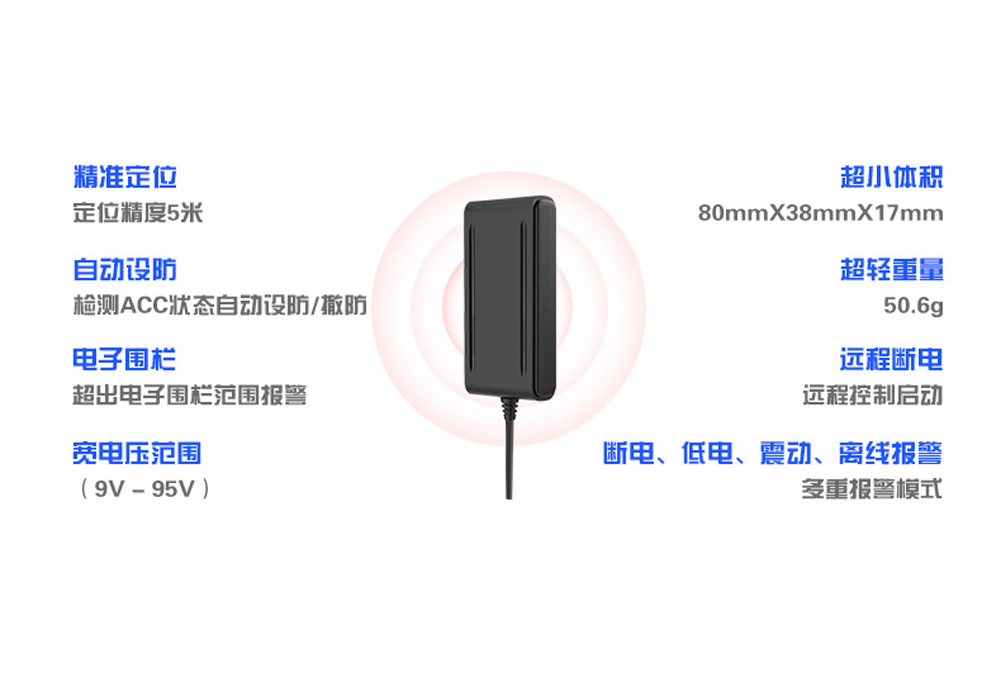

Product features

1. Support 4G full Netcom, CAT1 or catm1 / Nb / 2G band.

2. Support GPS / Beidou / AGPs / lbs precise positioning.

3. Multiple alarm modes: automatic fortification, DC detection, electronic fence, power failure alarm

Low power alarm, vibration alarm, offline alarm, etc.

4. Support RS232 serial port peripherals and SOS one key alarm.

5. Support 9v-95v wide voltage input

Application fields: enterprise fleet, private car, electric vehicle

Equipment parameters

Electrical characteristics:

Power supply mode: battery power supply

Working voltage range: DC 9V - 95v

Working current: 12V / 30mA - 40mA

Dormancy current: 12V / 5mA - 15mA

Built in battery capacity: 180MAH (3.7V optional)

Environmental characteristics: working temperature range: - 20 ℃ - 70 ℃

Storage temperature range: - 30 ℃ - 80 ℃

Operating humidity range: 5% - 95%

Communication characteristics: communication module brand / chip model: query EC20

Communication frequency band: fdd-lte: B1 / B3

TDD-LTE ：B38/ B39/ B40/ B41

WCDMA ：B1

TD-SCDMA：B34/B39

EVDO/CDMA2000 1x：BC0

GSM/EDGE：B3/B8

SIM card: Standard SIM card

Communication antenna: built in antenna

GPS / BD positioning features:

Positioning module brand / chip model: Zhongke micro at6558d

Cold start time: 32 seconds on average

Hot start time: 1 second on average

Sensitivity (tracking): - 162dbm

Positioning antenna: internal antenna

External interface: speaker output interface: support two parallel external speakers

Microphone interface: supports two parallel external microphones

I / O interface: low output 1 circuit (power cut off)

Low input 1 channel (SOS message)

High input 1 channel (ACC detection)

5V output interface: 1 channel

RS232 interface / can line / K line (compatible): 1 channel

(external camera, RFID and other external devices can be connected)

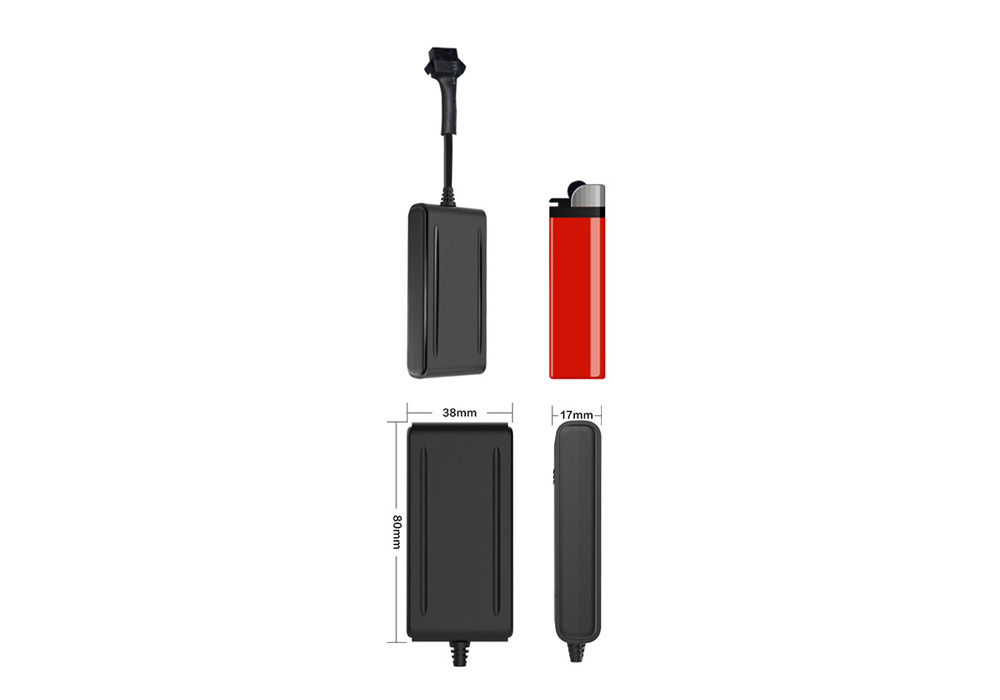

Outline specification: appearance dimension: 80mm * 38mm * 17mm

Shell material: ABS plastic

Host weight: 50.6g
