Product features

1.Precise positioning. The accuracy is up to 5 meters.

2. GPS+ Beidou +LBS three mode positioning.

3. Functions: ACC detection, remote power cut-off, DC detection, power failure alarm, over speed alarm, displacement alarm, remote pickup, remote door opening and closing, alarm horn, one key start, etc.

4. Industrial design, working voltage 9v-45v

Should be the field

Rental vehicles, credit vehicles, passenger vehicles, taxis, freight vehicles, etc

Equipment parameters

Electrical characteristics

Power supply mode: battery supply

Working voltage range: DC 9v-45v

Working current: 12V / 30ma-60ma

Dormancy current: 12V / 5ma-15ma

Built in battery capacity: 180MAH (3.7V polymer battery) optional

Communication characteristics

Communication module brand / chip model: mt6261d

Communication frequency band: support 2G: 850 / 900 / 1800 / 1900 MHz

SIM card: Standard SIM card

Communication antenna: external antenna

GPS solution: Zhongke micro at6558d GPS + BD dual mode positioning chipset

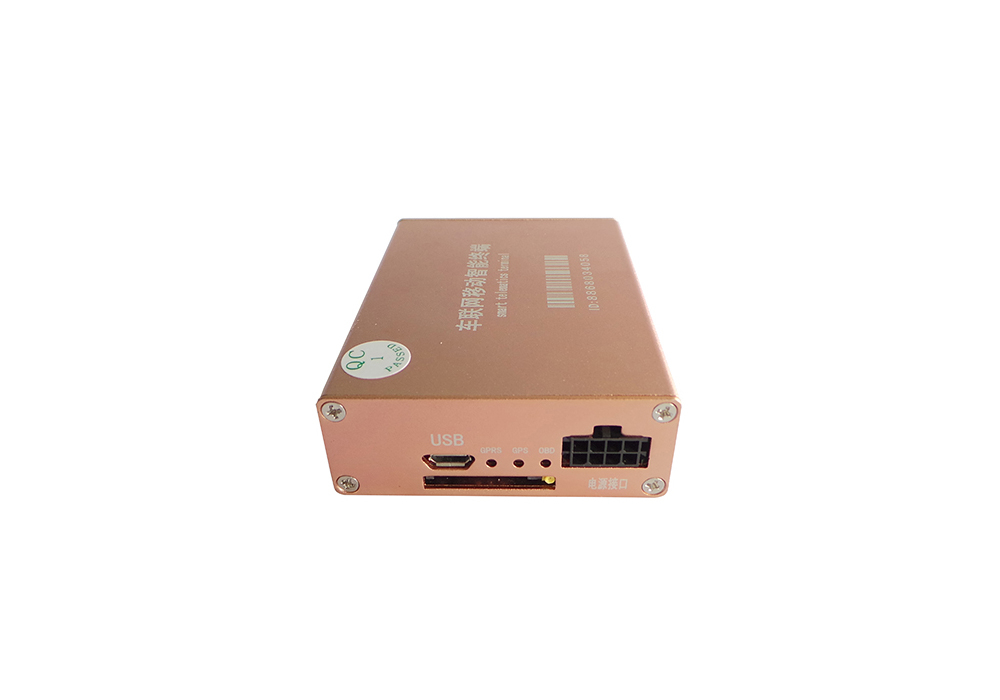

External interface

Speaker input interface: supports 2 parallel external speakers

Microphone input interface: supports 2 parallel external interface microphone

I / O interface output: low output 1 circuit (power cut-off), high output circuit 1 (ACC detection)

Serial port: 5V serial port 1 way

Environmental characteristics

Working temperature range: - 20 ℃ - 60 ℃

Storage temperature range: - 30 ℃ - 80 ℃

Operating temperature range: 5% - 95%

GPS / BD positioning characteristics

Positioning module brand / chip model: Zhongke micro at6558d

Cold start time: 32 seconds on average

Hot start time: 1 second on average

Sensitivity (tracking): - 162dbm

Positioning antenna: external antenna

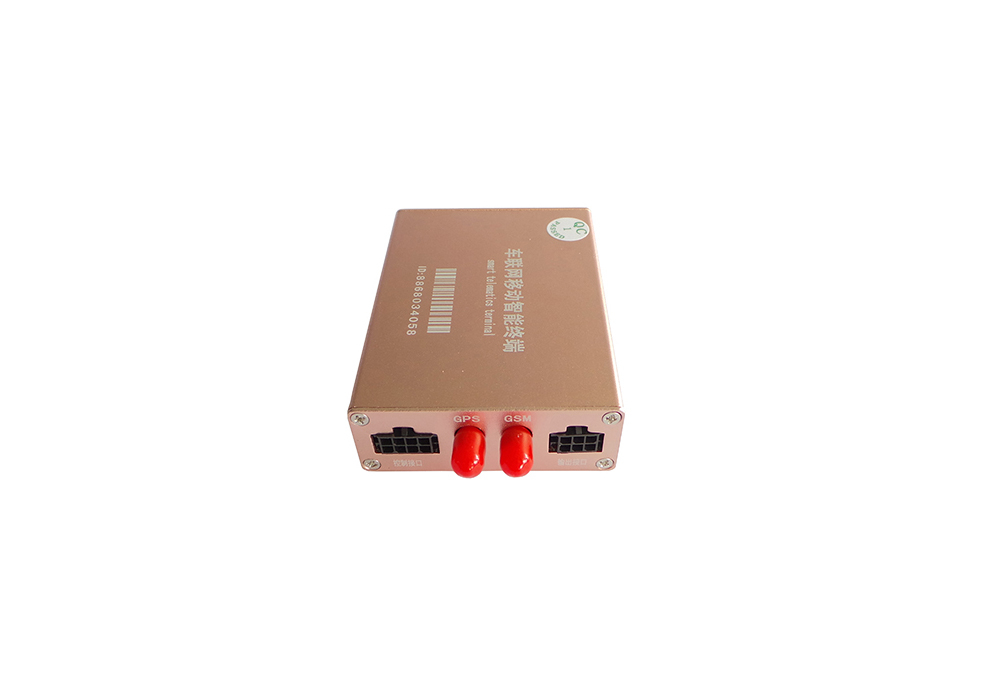

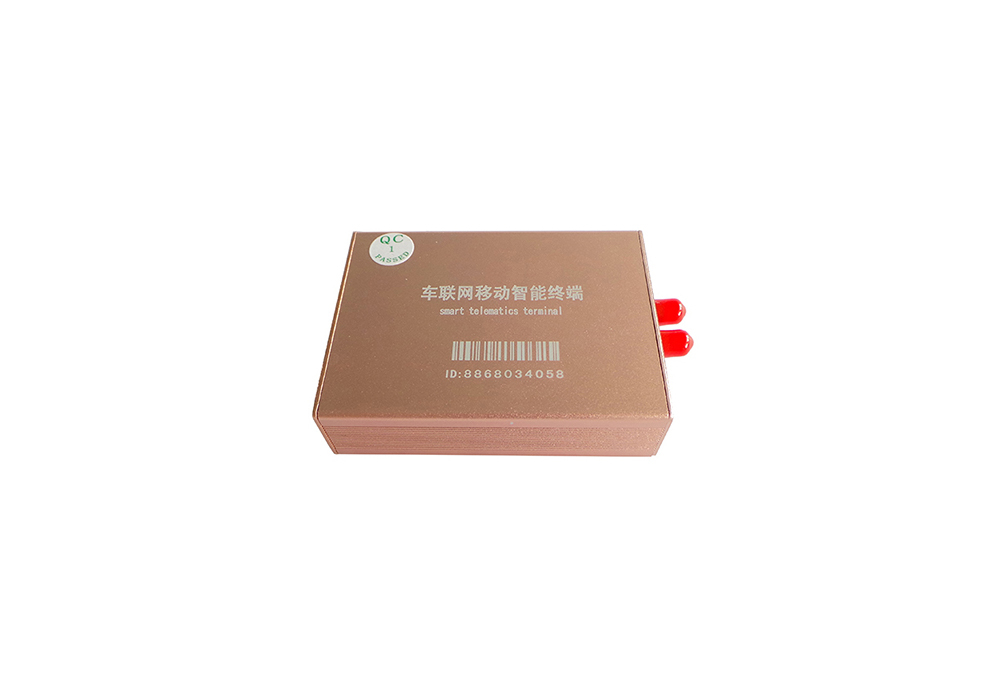

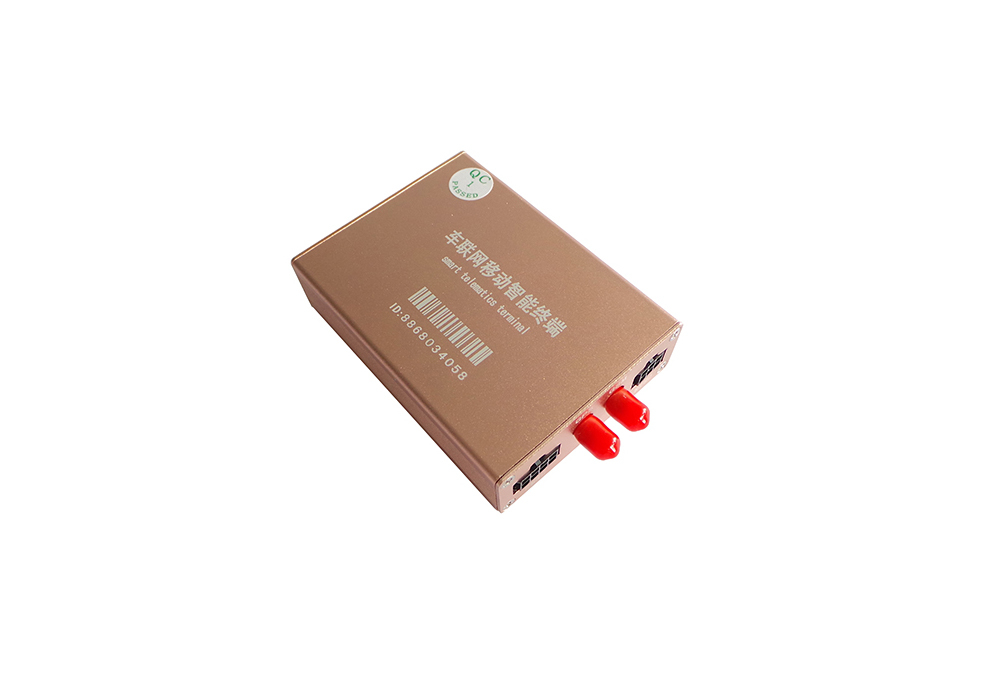

Appearance specification

Appearance size: 87mm * 65mm * 24mm

Shell material: Metal

Host weight: 140g
