Product features:

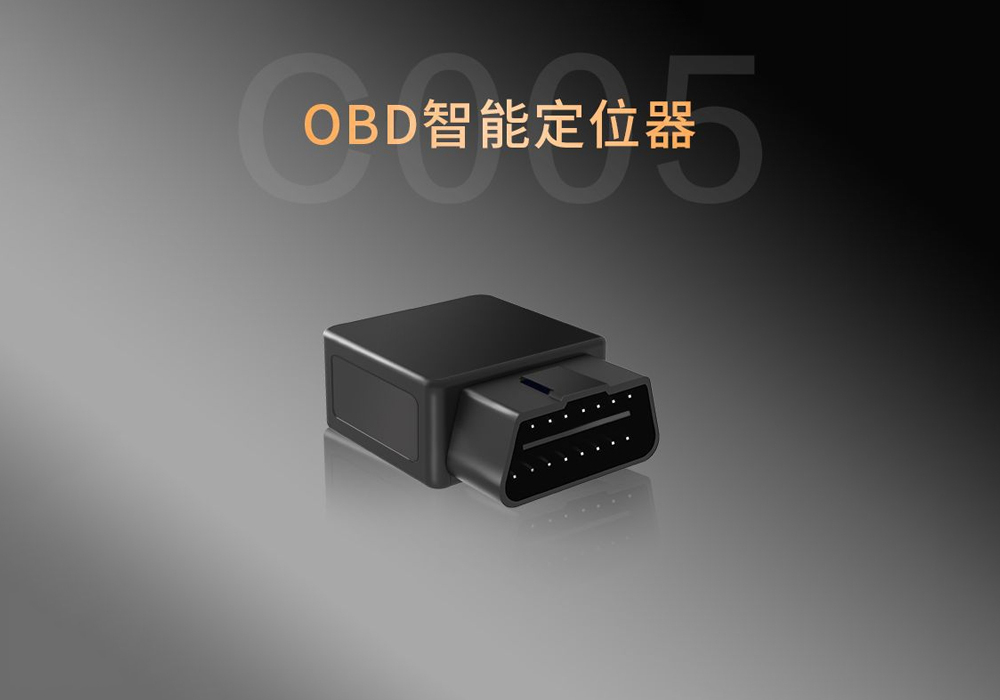

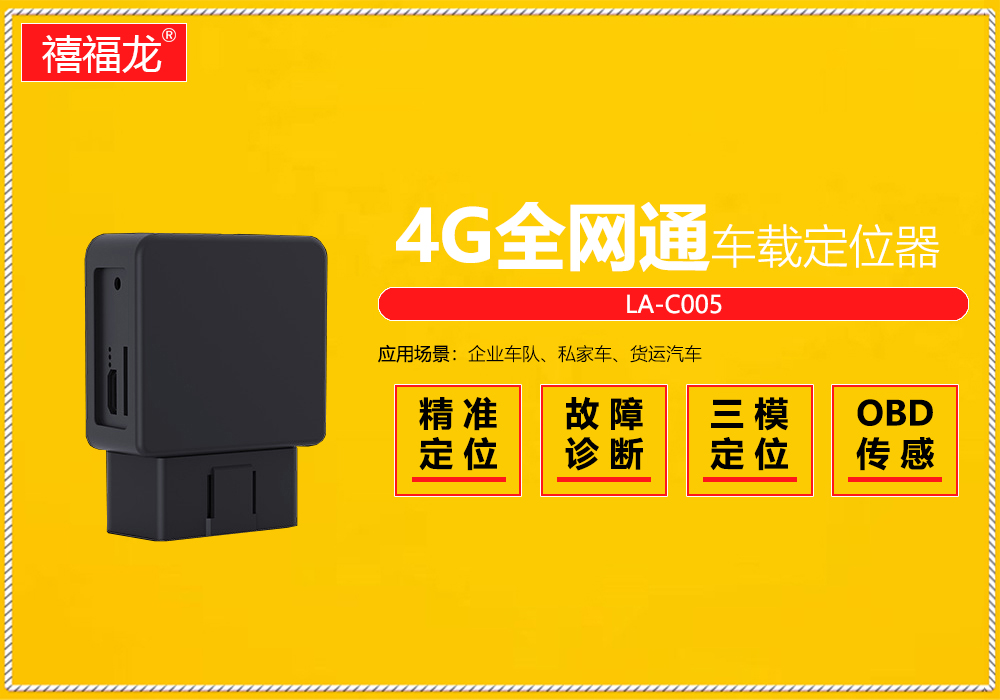

4G OBD sensor locator

1.Support 4G full Netcom and WiFi hot Internet (optional).

2. GPS / AGPs / BeiDou precise positioning.

3. The voltage design supports 9v-35v.

4. Support can line and K line to read original vehicle data, such as vehicle speed, speed, VIN code reading, coolant temperature, air flow, fault code

Battery voltage, vehicle speed, power system, chassis system, grid system and other data

Main parameters:

Power supply mode: battery power supply

Working voltage range: DC 9V - 35V

Working current: 12V / 73.6ma

Dormancy current: 12V / 38.2ma

Built in battery capacity: 140 MAH (3.7V polymer battery) optional

Communication module brand / chip model: query ec200t

Communication frequency band: LTE / 4G: FDD- LTE:B1/B3

TDD- LTE:B38/ B39/ B40/ B41

3G：WCDMA :B1

TD- SCDMA:B34/B39

EVDO/CDMA2000 1x:BC0

GSM/EDGE/2G：B3/B8

SIM card: Micro SIM card

Communication antenna: built in antenna

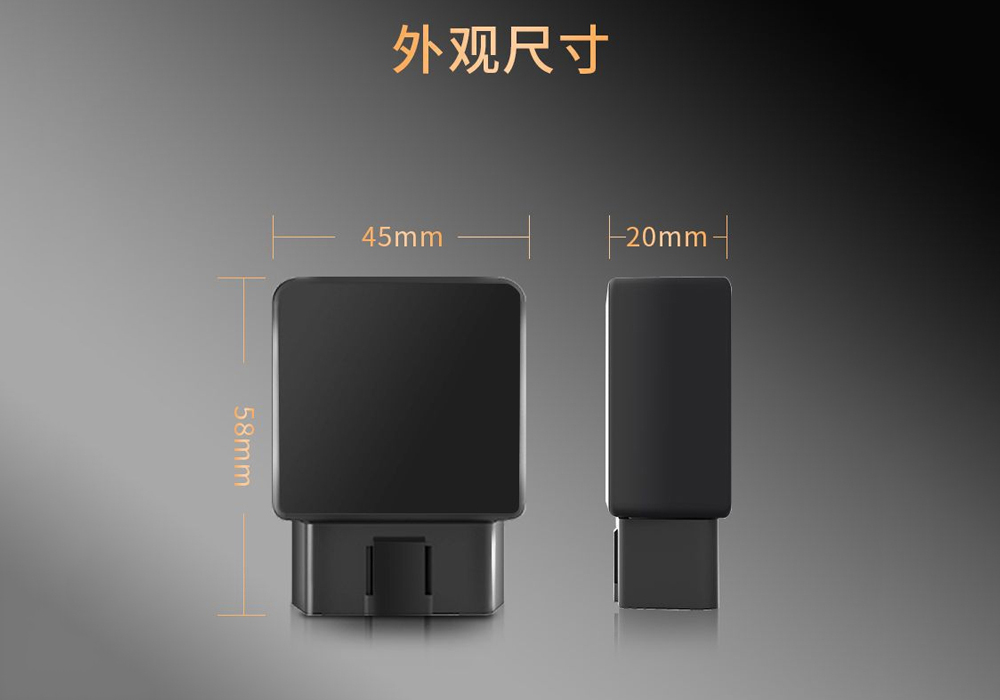

Dimension: 58mm * 45mm * 22mm

Shell material: ABS plastic

Main engine weight: 54G
