1.4g all Netcom, universal in the world, compatible with 2G / 3G / 4G of China Mobile, China Unicom and China Telecom.

2.GPS+ Beidou +LBS three mode positioning.

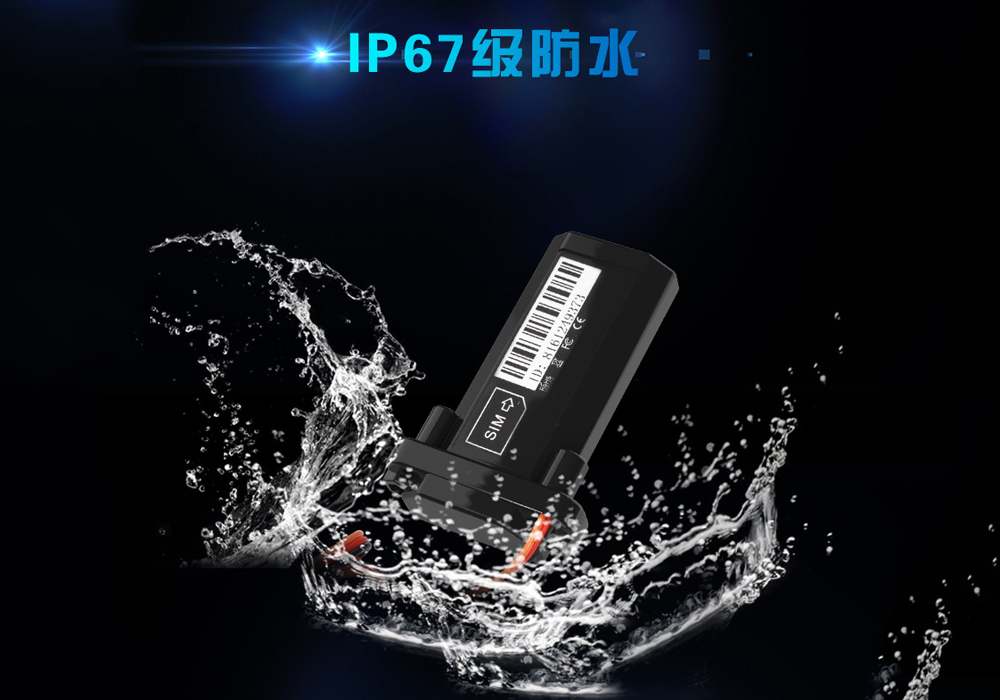

3. Fireproof and falling proof, IP67 waterproof and military grade technology.

4. Wide voltage design supports DC 9V - 95v.

Application fields: electric vehicles, motorcycles

Main parameters:

Power supply mode: battery power supply

Working voltage range: DC 9V - 95v

Working current: 12V / average 40mA

Dormancy current: 12V / less than 10mA

Built in battery capacity: 140 MAH (3.7V polymer battery) optional

Communication module brand / chip model: ec200t

Communication frequency band: LTE / 4G: FDD- LTE:B1/B3/B5/B8

TDD- LTE:B34/B38/B39/B40/B41

3G：WCDMA :B1/B8

TD-SCDMA：B34/B39

EVDO/CDMA：BC0

GSM/EDGE/2G：B3/B8

SIM card: Standard SIM card

Communication antenna: built in antenna

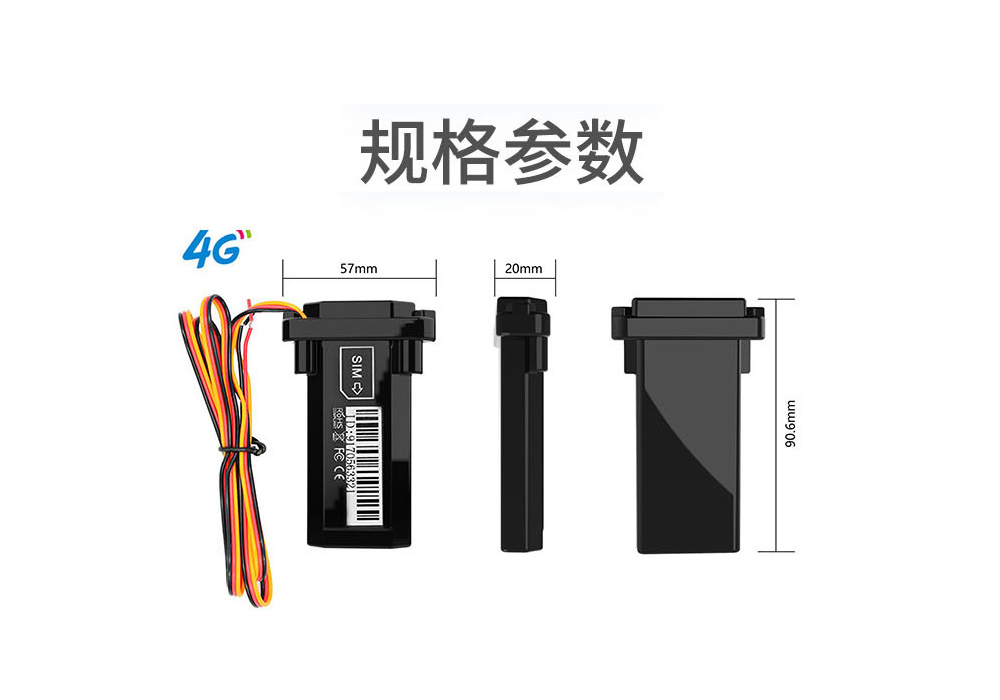

Appearance dimension: 90.6mm * 57mm * 20MM

Shell material: ABS plastic

IP protection grade: IP67

Main engine weight: 68g
